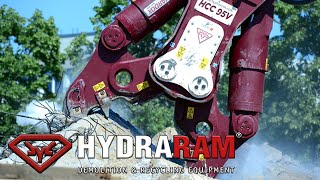

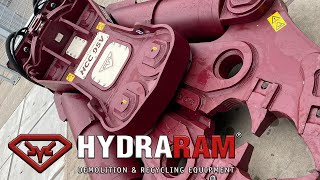

The Hydraram concrete crushers are designed for demolition of tall concrete structures, industrial structures and bridges where the main element is concrete with steel reinforcement.
HCC crushers' jaws are designed to effectively cut concrete. Blades located in the back of the jaws cut the reinforcement steel within concrete with ease.
Made from the most durable steel HARDOX-400® with an extremely high wear resistance, minimum maintenance and a long lifespan.
More advantages of the HCC-Series concrete cutters:
• Interchangeable teeth can be easily replaced. Available on the models HCC-5V up to HCC-27V.
• Made of durable HARDOX-400® steel.
• Equipped with a rapid flow valve for extremely fast work cycles.
• Equipped with a heavy duty double ball bearing swivel head and enhanced rotary motor.
There are 18 models available for excavators from 1.5 to 300 tons.
t.
|
kg.
|
mm
|
mm
|
bar
|
l/min
|
max bar
|
l/min
|
open/close (sec)
|
| HCC-1V | HCC-2V | HCC-3V | HCC-6V | HCC-12V | HCC-16V | HCC-19V | HCC-24V | HCC-32V | HCC-36V | HCC-42V | HCC-58V | HCC-72V | HCC-95V | HCC-110V | HCC-130V | HCC-150V | HCC-320V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.5 - 3.0 | 2 - 4 | 4 - 7 | 5 - 10 | 10 - 17 | 16 - 21 | 20 - 25 | 22 - 30 | 29 - 38 | 33 - 44 | 36 - 52 | 50 - 68 | 66 - 88 | 85 - 105 | 90 - 130 | 94 - 150 | 100 - 200 | 200 - 300 |
| 180 | 250 | 300 | 610 | 1230 | 1620 | 1960 | 2380 | 2960 | 3420 | 3920 | 5440 | 7140 | 9380 | 11940 | 13850 | 15800 | 32000 |
| 240 | 285 | 370 | 500 | 705 | 610 | 880 | 950 | 1110 | 1300 | 1360 | 1500 | 1750 | 1850 | 2060 | 2280 | 2550 | 3025 |
| 84 | 90 | 140 | 150 | 150 | 180 | 150 | 150 | 210 | 210 | 250 | 310 | 310 | 310 | 355 | 355 | - | - |
| 220 | 250 | 250 | 280 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| 20 - 25 | 40 - 60 | 60 - 80 | 80 - 150 | 150 - 250 | 180 - 250 | 180 - 250 | 200 - 300 | 250 - 350 | 280 - 380 | 300 - 400 | 350 - 450 | 400 - 500 | 450 - 650 | 500 - 800 | 500 - 800 | 600 - 1000 | 1000 - 1300 |
| 220 | 120 | 120 | 120 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 250 |
| 8 | 5 | 5 | 5 | 15 - 30 | 15 - 30 | 20 - 40 | 20 - 40 | 25 - 50 | 25 - 50 | 25 - 50 | 25 - 50 | 25 - 50 | 70 | 80 | 80 | 80 | 80 |
| 1.3 / 1.6 | 1.1 / 1.3 | 1.2 / 1.2 | 0.8 / 1.4 | 0.9 / 1.7 | 0.9 / 1.6 | 1.7 / 3.3 | 1.8 / 3.4 | 2.0 / 2.6 | 2.7 / 3.2 | 3.5 / 3.1 | 3.6 / 3.9 | 3.8 / 4.1 | 3.8 / 3.9 | 3.7 / 4.0 | 3.7 / 4.1 | 3.8 / 4.3 | 4.9 / 6.1 |
| Excavator class | Weight (KG) | Daily price € | Weekly price € |
|---|---|---|---|
| 1 - 3 | 120 | 110 | 385 |
| 2 - 4 | 200 | 145 | 500 |
| 4 - 7 | 300 | 170 | 590 |
| 5 - 10 | 520 | 195 | 685 |
| 10 - 17 | 1000 | 220 | 775 |
| 16 - 21 | 1700 | 255 | 885 |
| 20 - 25 | 1960 | 290 | 1010 |
| 22 - 30 | 2200 | 330 | 1155 |
| 29 - 38 | 2960 | 380 | 1365 |
| 36 - 52 | 3900 | 420 | 1470 |
| 50 - 68 | 5440 | 525 | 1840 |
| 66 - 88 | 7140 | 685 | 2390 |
| 86 - 105 | 9380 | 895 | 3125 |
| 90 - 130 | 11940 | 1260 | 4410 |
| 94 - 150 | 13850 | 1650 | 5775 |
